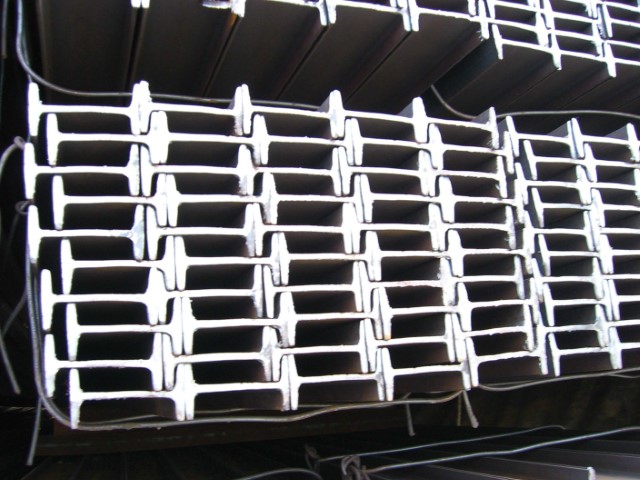

Hot rolled girders – IPB-L – HEA
I and H profiles made of structural steel, tolerances of shapes and dimensions defined by the standard SRPS EN 10027-1 are intended for the manufacture of steel structures and other assemblies in industry and construction.
Steel quality:
According to the standard of quality regulations SRPS EN 10027-1 for general structural steels, usual quality:
DIN 17100
RSt 37-25
RSt 44-2
sT 52-3N
DIN 17100
RSt 37-2
SRPS EN 10027-2
1.0037
Tolerances
Prescribes the standard for dimensions, weight and tolerances SRPS EN 10034, for hot-rolled profiles:
I – girders, I – girders wide, light variant, IPB – /
Assortment
Production length: 6 m, 12 m. On request, it is possible to deliver larger dimensions and tailor-made cutting.
| UPN code | Dimensions (mm) | Mass (kg) | ||||

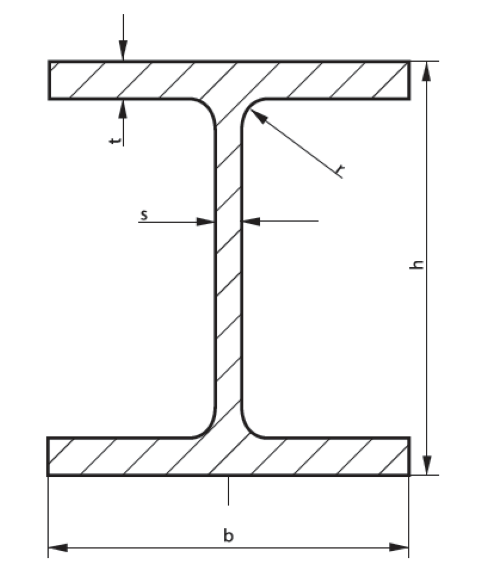

| h | b | s | t | r | ||
| 100 | 96 | 100 | 5,0 | 8,0 | 12,0 | 16,70 |
| 120 | 114 | 120 | 5,0 | 8,0 | 12,0 | 19,90 |
| 140 | 133 | 140 | 5,5 | 8,5 | 12,0 | 24,70 |
| 160 | 152 | 160 | 6,0 | 9,0 | 15,0 | 30,40 |
| 180 | 171 | 180 | 6,0 | 9,5 | 15,0 | 35,50 |
| 200 | 190 | 200 | 6,5 | 10,0 | 18,0 | 42,30 |
| 220 | 210 | 220 | 7,0 | 11,0 | 18,0 | 50,50 |
| 240 | 230 | 240 | 7,5 | 12,0 | 21,0 | 60,30 |
| 260 | 250 | 260 | 7,5 | 12,5 | 24,0 | 68,20 |
| 280 | 270 | 280 | 8,0 | 13,0 | 24,0 | 76,40 |
| 300 | 290 | 300 | 8,5 | 14,0 | 27,0 | 88,30 |
| 320 | 310 | 300 | 9,0 | 15,5 | 27,0 | 97,60 |
| 340 | 330 | 300 | 9,5 | 16,5 | 27,0 | 105,00 |
| 360 | 350 | 300 | 10,0 | 17,0 | 27,0 | 112,00 |
| 400 | 390 | 300 | 11,0 | 19,0 | 27,0 | 125,00 |
| 450 | 440 | 300 | 11,5 | 21,0 | 27,0 | 140,00 |
| 500 | 490 | 300 | 12,0 | 23,0 | 27,0 | 155,00 |
| 550 | 540 | 300 | 12,5 | 24,0 | 27,0 | 166,00 |
| 600 | 590 | 300 | 13 | 25,0 | 27,0 | 178,00 |
