STEEL PIPES

Longitudinally welded pipes of cold-formed base material of round, square and rectangular cross-section are made of hot-rolled or cold-rolled quality tape of structural steels suitable for cold forming, are used for structures in construction and mechanical engineering, agricultural machinery and automotive industry.

Assortment:
Welded pipes for constructions are usually delivered in the qualities of general construction steels S235JR and DD11. Cross-section of steel welded pipes The cross-sectional characteristics are given on the basis of nominal external dimensions and wall thickness.

Chemical Composition

Round Pipes

Square Pipes

Rectangular Pipes

Chemical Composition

Quality standard
EN 10027-1	DIN 17100	JUS C.B0.500
Steel type designation
S 235 JRG2	RSt 37-2	No. 0361
S 235 JO	St 37-3 U	No. 0362
S 235 J2G3	St 37-3 N	No. 0363
S275 JR	St 44-2	No. 0451
S 275 JO	St 44-3 U	No. 0452
S 275 J2G3	St 44-3 N	No. 0453
S 255 JR		No. 0561
S 355 JO	St 52-3 U	No. 0562
S 355 J2G3	St 52-3 N	No. 0563

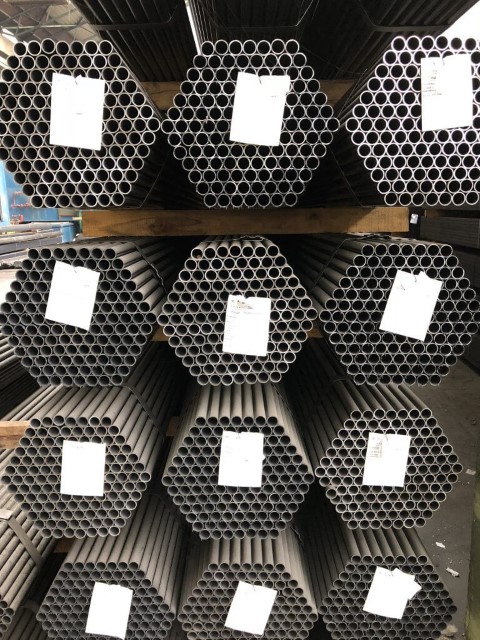

Round Pipes

Supplied according to SRPS EN 10219-1 welded pipes, cold-formed, round, square and rectangular cross-section for structures, shape and dimensions in standard SRPS EN 10219-2 steel pipes with welds, shape and dimensions – without hydraulic testing in dimensions: – external with a diameter of 17.2 – 711 mm and a wall thickness of 1.5 – 12.5 mm according to the table: Round pipes are also supplied according to SRPS EN 10219-2 and SRPS EN 10255 steel pipes without prescribed mechanical properties, for pipe thread and measures – hydro-tests.

Outside diameter (mm)	Wall thickness (mm)
	1,5	1,8	2	2,5	2,6	3	3,25	3,5	4	4,5	5	5,6	6,3	7,1	8
	Extended weight (kg / m) *
17,20	0,58	0,68	0,75	0,91
21,30	0,73	0,86	0,95	1,16
25,40	0,88	1,05	1,15	1,41
26,90	0,94	1,11	1,23	1,50
31,80	1,12	1,33	1,47	1,81
33,70	1,19	1,42	1,56	1,92	1,99	2,27	2,44	2,61
38,00	1,35	1,61	1,78	2,19	2,36	2,59
40,00	1,42	1,69	1,87	2,31	2,52	2,74
42,40	1,51	1,80	1,99	2,46	2,55	2,91
44,50	1,59	1,90	2,10	2,59	2,84	3,07	3,58	3,84	4,38
48,30	1,73	2,06	2,28	2,82	3,02	3,35	3,61	4,1	4,37	5,25
51	1,83	2,18	2,42	2,99	3,2	3,55	3,83	4,4	4,85	5,44
56		2,40	2,66	3,33	3,65	3,92	4,23	4,53	5,49	6,14
60,30		2,60	2,88	3,56	3,85	4,24	4,57	4,9	5,55	6,19	6,82
63,25			3,02	3,74	4,06	4,66	4,81	5,41	6,18	6,92	7,65
76,1			3,65	4,54	4,85	5,41	5,84	6,26	7,11	7,95	8,87
88,9			4,29	5,32	5,53	6,35	6,86	7,37	8,38	9,37	10,3
101,6				6,11	6,53	7,29	7,88	8,46	9,63	10,8	11,9
108				6,61	6,87	7,76	8,39	9,02	10,3	11,5	12,7
114,3					7,34	8,23	8,9	9,56	10,9	12,2	13,5
127					8,14	9,17	10,15	10,65	12,10	13,97	15
133						9,61	10,39	11,17	12,7	14,3	15,8	17,6
139,7									13,4	15	16,6	18,5
159									15,3	17,1	19	21,2
168,3									16,2	18,2	20,1	22,5	25,2
219,1											26,4	29,5	33,1	37,1	41,6

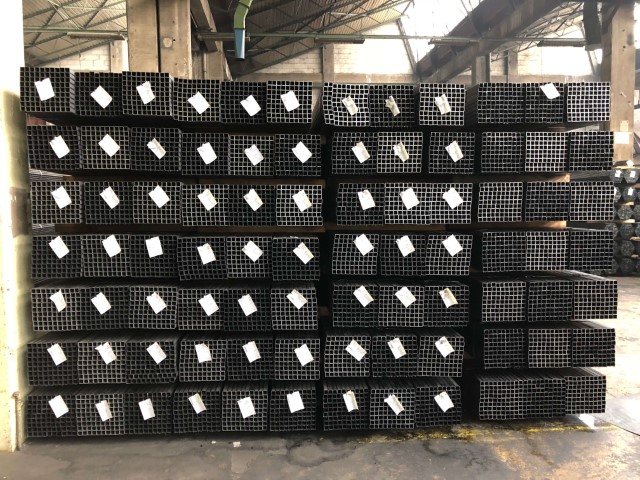

Square Pipes

Supplied according to SRPS EN 10219-1, welded pipes, cold-formed, round, square and rectangular cross-section for structures, shape and dimensions in dimensions:
– square sides from 13×13 mm to 160×160 mm and wall thickness 1.5 – 6 mm according to the table:

Side dimensions (mm)	Wall thickness (mm)
	1,5	1,8	2	2,5	3	3,5	4	5	6
	Extended weight (kg / m) *
13×13	0,52	0,63	0,662
15×15	0,62	0,75	0,789
16×16	0,66	0,8	0,842
18×18	0,74	0,92	0,947
20×20	0,84	1,03	1,10
25×25	1,84	1,31	1,45
30×30	1,29	1,59	1,38	2,16	2,54
35×35	1,51	1,88	2,03	2,55	3,01	3,84
40×40	1,81	2,16	2,38	2,49	3,49	4,01	4,52
50×50	2,28	2,72	3,01	3,72	4,28	5,11	5,51	6,39
60×60	2,76	3,29	3,65	4,50	5,22	6,21	6,76	8,13
70×70			4,26	4,29	6,16	7,31	8,02	9,70
80×80			4.86	6,07	7,10	8,41	9,28	11,30
90×90				6.71	8,04	9,51	10,5	12,80
100×100				7.49	8,99	10,61	11,8	14,40	17,71
110×110					9,9	11,7	12,99	15,81	18,62
120×120					10,84	12,8	14,25	17,38	20,51
130×130							15,82	19,62	23,36
140×140							17,19	21,36	25,49
150×150							18,01	22,09	26,16
160×160							19,4	23,76	28,04

Rectangular Pipes

Supplied according to SRPS EN 10219-1, welded pipes, cold-formed, round, square and rectangular cross-section for structures, shape and dimensions in dimensions:
– rectangular sides of 20×10 mm and wall thickness 1.5 – 6 mm according to the table
Production length for round, square and rectangular pipes measuring up to 40×40 mm is from 4m to 8m, and for dimensions over 50×50 mm is from 4m to 12m.
Custom cutting is possible on request.

Side dimensions (mm)	Wall thickness (mm)
	1,5	1,7	1,8	2	2,5	3	3,5	4	4,5	5	6
	Extended weight (kg / m) *
20×10	0,71	0,81	0,85	0,789
30×20	1,07	1,24	1,31	1,45
30×15	0,95	1,11	1,17	1,24
40×20	1,29	1,51	1,59	1,74	2,16
40×30	1,51	1,78	1,88	2,03	2,55	3,30	3,84
50×20	1,51	1,78	1,88	2,03	2,55	3,30	3,84
50×30	1,81	2,04	2,16	2,38	2,94	3,49	4,28	4,86
50×40	2,05	2,31	2,44	2,7	3,34	3,96	3,56	5,49
60×20	1,81	2,04	2,16	2,38	3,03
60×30	2,05	2.31	2.44	2,70	2,34	4,19	4,83	5,49
60×40	2,29	2,58	2,72	3,01	3,72	4,28	5,11	5,51
70×50				3,65	4.54	5.51	6.21	7.11
80×40			3.29	3,64	4,50	5,22	6,21	6,76
80×50					4,90	5.69
80×60			3.83	4,26	5,29	6,16	7,31	8,02	9,26
100×40				4,26	5,29	6,16	7,73	8,02	9,26
100×50					5.68	6,63	7.86	8.65
100×60				4.86	6,07	7,10	8,41	9,28	10,67	11,30
100×80					6,86	8,04	9,51	10,50	12,08	12,80
120×40				4.86	6,07	7,10	8,41	9,28	10,67
120×60					6.71	8,04	9,51	10,50	12,08	12,80
120×80						9,17	10,61	12,13	13,49	15,03
120×100						10,03	11,70	12,99	14,91	15,81
140×60								11,73	13,49	14,24
140×80						9,90	11,70	12,99	14,91	15,81
150×50						11.4	13.3	15,2	17,03	18,17	21,45
160×100								15,83	17,73	19,63	23,36
200×80								17,08	19,5	21,20	25,25
200×100								18,01	20,56	22,96	26,16
